Stainless Steel Wedge Mesh Winding Filter Element Self Cleaning Filter Wedge Wire Filter
Introduction:

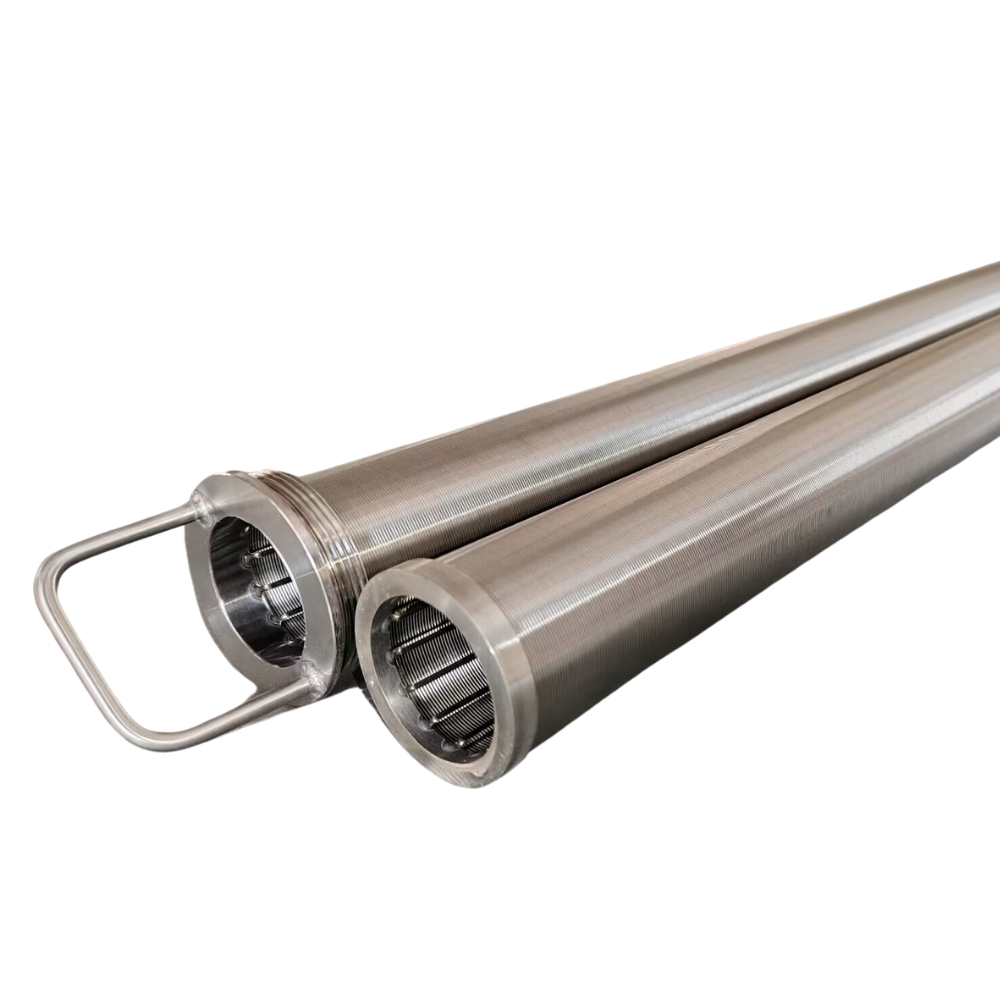

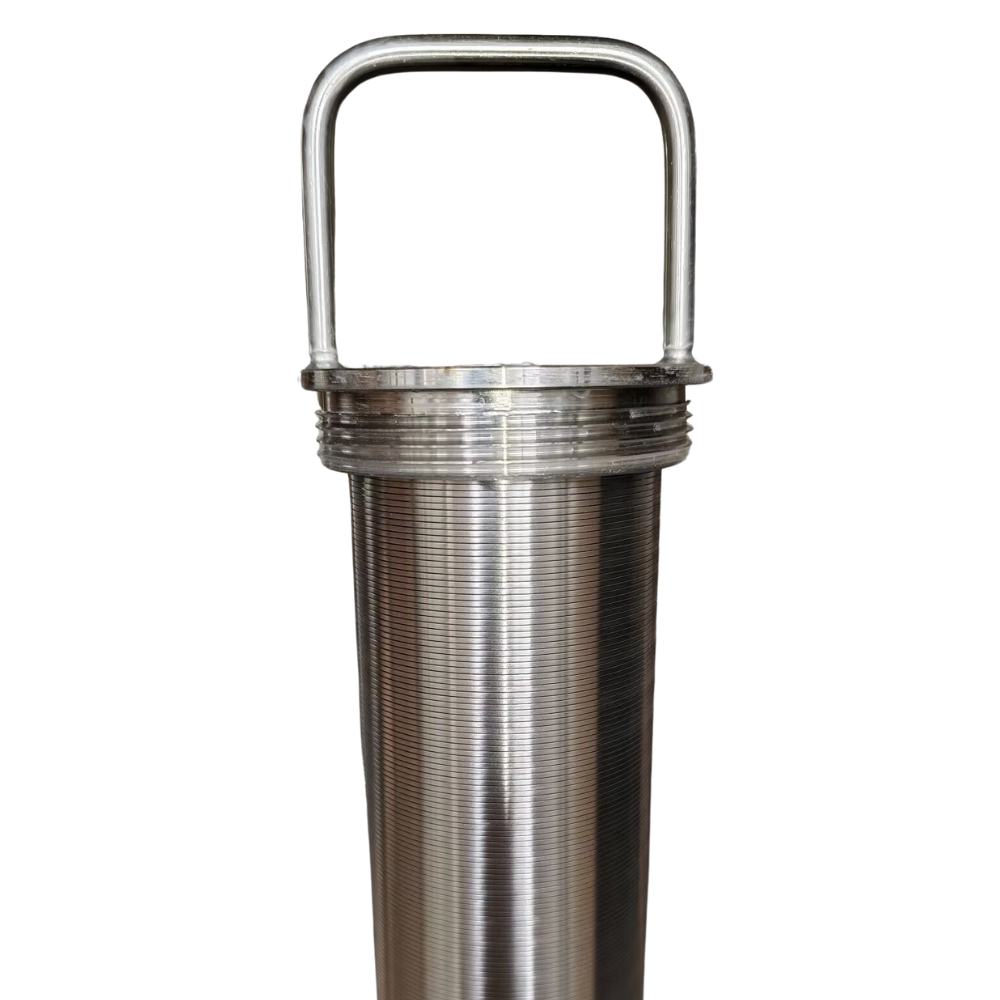

Wedge silk filter, also known as the wedge silk filter, wedge silk candle filter, is installed on the filter equipment, to achieve the filtration of particles and liquid.Finity is up to 20 microns.Wedge Filter is made of triangular or wedge wire surface profiles with continuous grooves that provide large open area filtration wedge The top of the wire filter is usually threaded for easy installation to the device and the bottom can be flat or tapered to seal and prevent particles from passing through.It is also used for fixation and positioning.
Materials:
As the Environmental protection is a complecated environment.There maybe need for separating the garbages from water,sand or land.Or the leaves from sand to be processed in to manure.So you will need a high resistance abration and corrosion. The stainless steel is best choice for those.The products we supplyed is Stainless steel 304 or 316 ,as your required.The chmical character of the stainless steel meet your needs.
| Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | | | | | |
| 2-7/8” | 58 | 73.0 | 4 | 90 | | | | | |
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | | | | | |
| 16 | 378 | 406.4 | 34 | 9 | | | | | |
| 20 | 476 | 508.0 | 53 | 9 | | | | | |
| Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells |
Features:
High temperature resistance, pressure resistance, can filter 20 micron particles in various sizes and end types.Large area of open, high filtration efficiency.Stainless steel material, with a long service life.Easy to clean and go on with low maintenance.
Application:
Wedge silk filter is suitable for primary filters with large flow and pressure difference in various water treatment fields, including boiler water, petrochemical water, paper water, ship ballast water The wedge silk candle filter can be used as an aluminum filter / beer candle pre-coated filter for precoated candle wedge screen (vertical filter element, beer candle)
Package and Delivery:
Package is professional export and wooden box.If you have any special demands.we can negotiate.
